Specifications
| Ref. no. | CLS01NWMWH |
| Model / name | Xclass |
| LED | Yes |
| Colour | White |
| IP rating | IP54 |
| Room | Living room, Kitchen, Study, Bathroom |

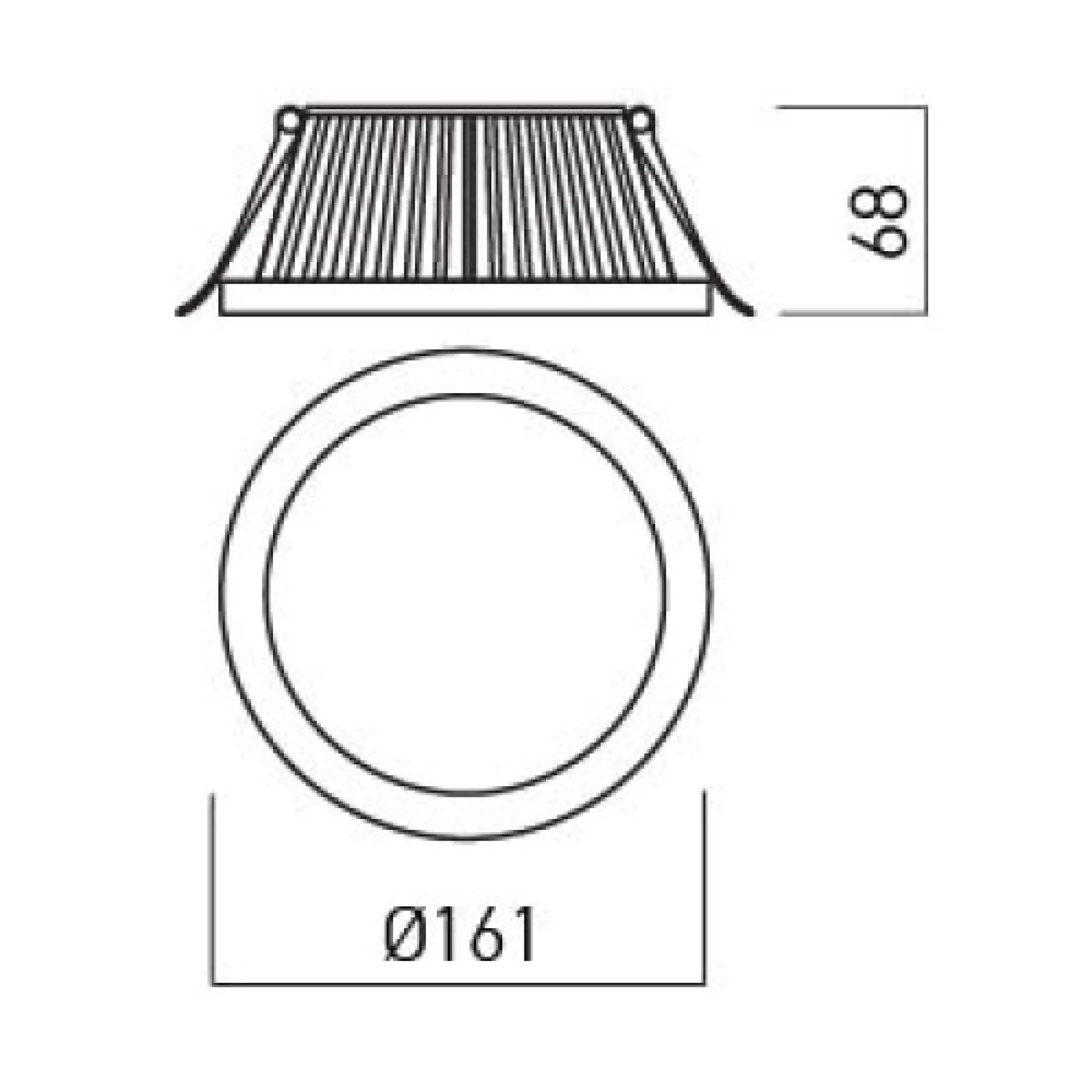

| Dimensions | Diameter: 161mm, Depth: 68mm, Diameter of отвора: 145mm |
| Mounting | Recessed |
| Material | Aluminium, Plastic |
| Power | 1 x 21W , 4000K, 1576lm, CRI>80 |
| Colour temperature | 4000K |
| Colour rendering CRI (Ra) | >80 |
| Base | LED (integrated) |
| Power supply | 18 - 36V DC, 700mA |
What do these specifications mean?
- Lumens (lm)
- How much light leaves the fixture — like litres of water from a tap. It does not tell you how bright the room will be.
- Lux (lx)
- How much light lands on a surface: 1 lx = 1 lm spread over 1 m². A desk needs about 500 lx, a cosy living room 100–150 lx.
- Colour temperature (K)
- 2700–3000 K is warm and cosy, 4000 K is neutral (best for work), 5000+ K is cold. Never mix different K in one room.
- CRI (Ra)
- How faithfully colours appear, 0–100. 80 is the minimum; 90+ makes skin, wood and fabrics look the way they really are.
- UGR
- Glare rating — how much the fixture dazzles you. For offices with screens look for UGR ≤ 19.
- IP rating
- Protection against dust and water: IP20 for dry rooms, IP44 for bathrooms, IP65 for outdoors.
